— XGRIDS Lixel L2 Pro accessory

XGRIDS Lixel L2 Pro
Vehicle Mount

Capture roads, campuses, industrial sites and infrastructure from a moving vehicle while keeping the Lixel L2 Pro workflow familiar — live point-cloud QA, RTK-supported positioning and true-colour output.

40 km/h · Maximum driving speed20–30 km/h · Recommended driving speed~3 hr · Mount battery runtime1.964 kg · Mount weight
Request pricing → Explore XGRIDS Lixel L2 Pro Talk to our team
Vehicle-mounted mobile LiDAR

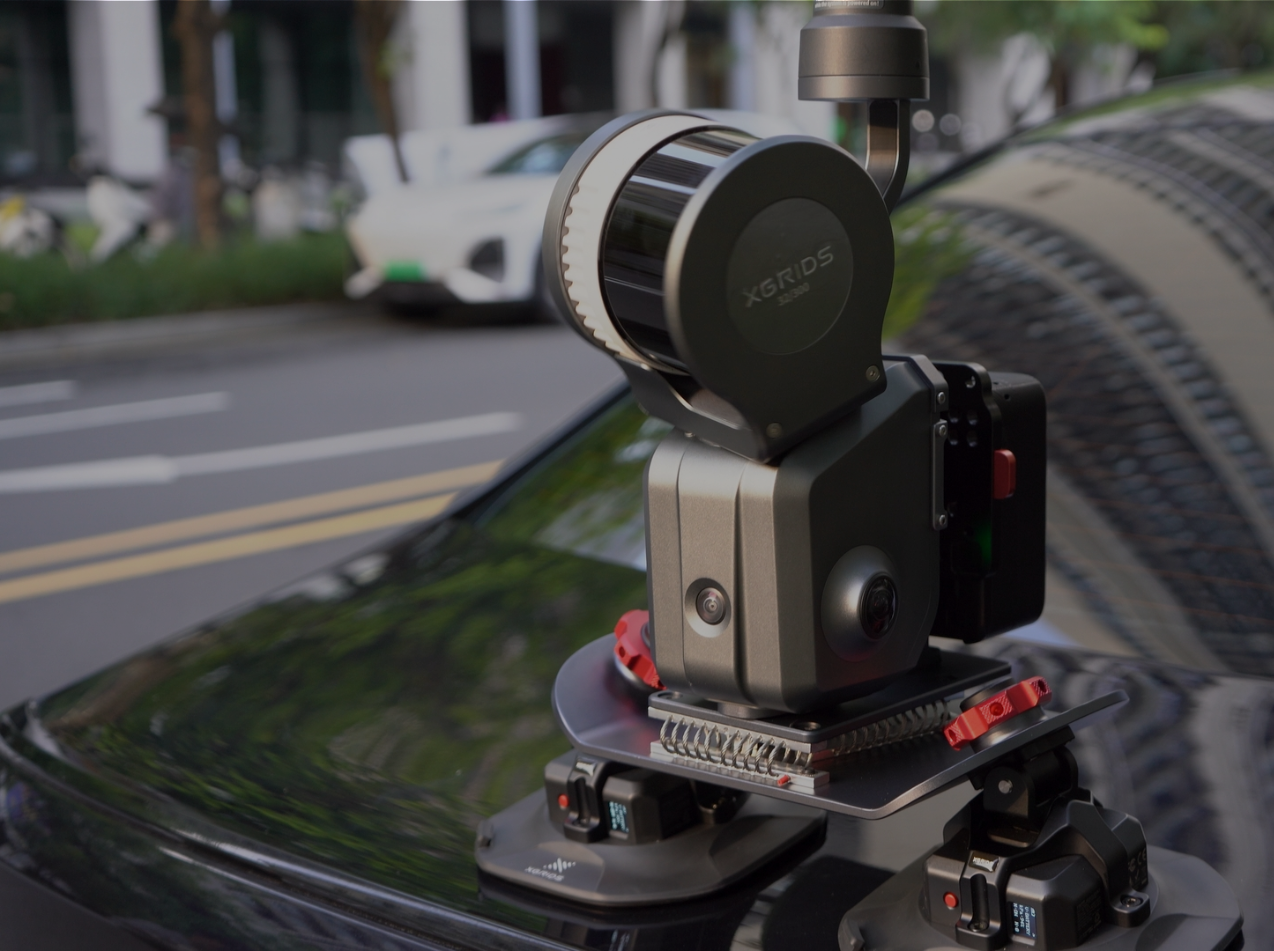

XGRIDS Lixel L2 Pro Vehicle Mount mobile mapping system

The mount is built around production efficiency: secure suction mounting, real-time monitoring and a live point-cloud preview let the operator confirm coverage while the vehicle is moving.

— Deployment workflow

Cover more ground.
Know what you captured before you leave.

Built around the Lixel L2 Pro

XGRIDS Lixel L2 Pro Vehicle Mount

Capture roads, campuses, industrial sites and infrastructure from a moving vehicle while keeping the Lixel L2 Pro workflow familiar — live point-cloud QA, RTK-supported positioning and true-colour output.

01

Smart suction monitoring

Electronic suction monitoring helps confirm that the mounting system remains securely attached during mobile capture.

02

Live QA/QC

View the point cloud while driving so gaps, poor coverage or trajectory problems can be identified before leaving the site.

03

RTK-supported positioning

Use the L2 Pro RTK workflow for georeferenced mobile capture and downstream survey / mapping workflows.

04

True-colour output

Retain the L2 Pro panoramic imaging workflow for coloured point clouds that are easier to interpret and communicate.

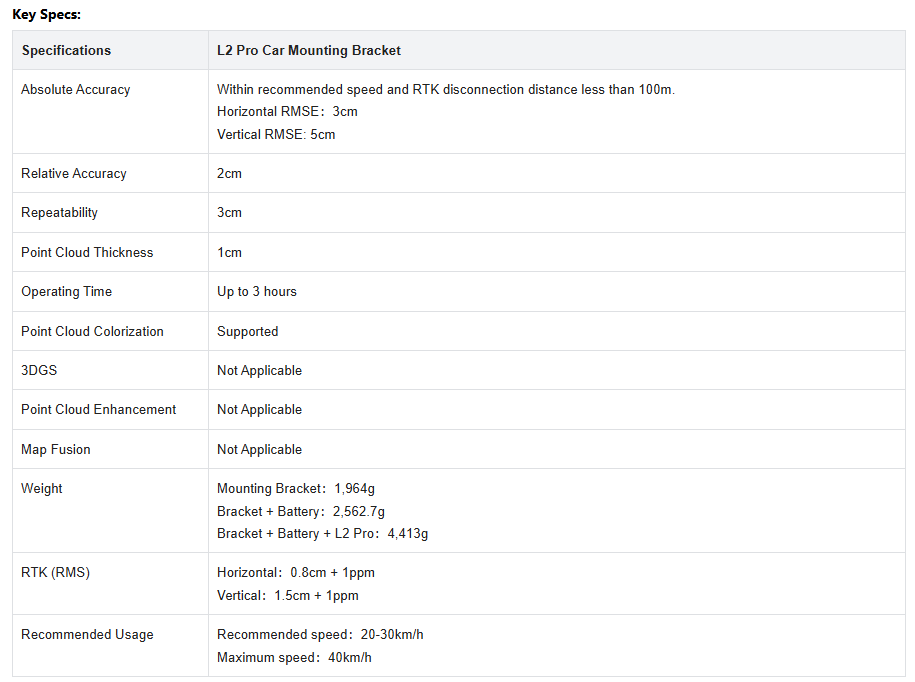

— System specifications

Built around
field deployment.

These values describe the mounting/deployment system. Scanner accuracy and final deliverable quality still depend on the L2 Pro configuration, control, trajectory, environment and processing workflow.

Recommended speed20–30 km/h
Maximum speed40 km/h
Mount weight1,964 g
Total system weightApprox. 4,413 g
Mount battery runtimeUp to approx. 3 hours
Mounting methodIntelligent suction system
QA/QCLive point-cloud preview
Scanner compatibilityXGRIDS Lixel L2 Pro

Vehicle-mode limitations: Colouring is supported. 3DGS, Point Cloud Enhancement and Map Fusion are not supported in vehicle-mounted mode.

Specifications and supported workflows can change with hardware/firmware revisions. True Point Precision will confirm current compatibility when quoting the system.

A complete mounting system is more than the bracket itself. The supplied cables, power components, adapters and hardware are what make the deployment field-ready.

— Kit contents

What comes
with the mount.

XGRIDS Lixel L2 Pro Vehicle Mount mobile mapping system

XGRIDS Lixel L2 Pro Vehicle Mount

  • ✓Vehicle mount
  • ✓V-mount vehicle battery
  • ✓Battery cable
  • ✓Charger plug
  • ✓3-in-1 cable
  • ✓USB-C cable
  • ✓Wireless suction monitor
  • ✓Quick-release bracket
  • ✓Toolkit
  • ✓User manual
— Mobile mapping applications

Deploy the XGRIDS Lixel L2 Pro
around the site.

The value of the mount is simple: keep the same scanner platform while changing how the site is covered.

01

Road & corridor mapping

Rapidly capture roadways, parking areas, corridors and connected infrastructure.

02

Campuses & industrial sites

Reduce walking time across large plants, campuses and logistics environments.

03

Construction progress

Capture repeatable exterior/site conditions faster on projects with large footprints.

04

Urban & infrastructure documentation

Build mobile reality-capture datasets for planning, asset documentation and engineering reference.

Mounting an L2 Pro changes the deployment workflow, so compatibility, safety, control and project planning matter more than a simple accessory SKU.

— Frequently asked

Before you
deploy it.

How fast can I drive while scanning?
The mount is specified for a recommended driving speed of 20–30 km/h and a maximum of 40 km/h. Actual project speed should still be chosen around required density, geometry, safety and site conditions.
Does the vehicle mount include suction monitoring?
Yes. The system includes intelligent suction monitoring and a wireless monitor for the electronic suction cups.
Can I see the point cloud while driving?
Yes. The L2 Pro workflow provides a live point-cloud preview so the team can perform on-site QA/QC while collecting data.
Does the vehicle mount change the L2 Pro accuracy specification?
Vehicle-mounted performance differs from handheld specifications. XGRIDS recommends 20–30 km/h, with a maximum of 40 km/h. Its vehicle-mode absolute accuracy figures are 3 cm horizontal and 5 cm vertical RMSE at the recommended speed with RTK disconnection distance under 100 m. Higher speeds can reduce registration quality; these figures are not an accuracy guarantee at 40 km/h. Project accuracy also depends on configuration, trajectory, control, environment and processing.
Can True Point Precision help configure a complete mobile-mapping kit?
Yes. We can help with the L2 Pro configuration, vehicle mount, RTK, batteries, field workflow and downstream processing.
— Build the system around the project

Need the complete XGRIDS Lixel L2 Pro deployment kit?

Tell us the scanner configuration, project type, control requirements and deployment method. True Point Precision can configure the L2 Pro, mount, RTK and field workflow together.
